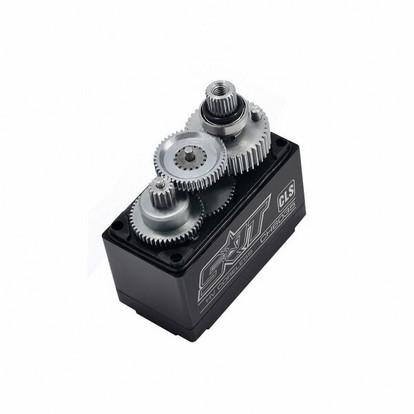

SRT CH6035 Coreless HV High torque 32.0kg/0.15sec @7.4V
Tuotekuvaus
SRT-Racing - Servos for Profis!
Features:
- Coreless motor
- Middle case made of aluminum
- Incredible efficiency and low power consumption
- 330Hz working frequence
- Superior holding and speed
- Metal gear
- 25T output shaft
| Voltage: | 6.0V | 7.4V | 8.4V |
| Operating Speed: | 0.16 sec/60° | 0.15 sec/60° | 0.14 sec/60° |
| Torque: | 30.0 kgcm | 32.0 kgcm | 35.0 kgcm |
| Current min./max.: | 20mA/3100mA | 30mA/3500mA | 35mA/3800mA |
| Motor: | Coreless | ||
| Gear: | Titanium / Steel | ||
| Typ: | Digital | ||
| Frequence: | 330Hz | ||
| Ball Bearing: | Yes | ||
| Dimension: | 40.7x20.5x38.5 mm | ||
| Weight: | 75.0g | ||
| Horn Gear Spline: | 25T | ||
| Best for: | 1/5 On/Off Road, Airplane | ||
