SRT M11 1/12 Pancar HV (0,055s/9.0kg/8.4V) Coreless Servo
SRT M11 1/12 Pancar HV (0,055s/9.0kg/8.4V) Coreless Servo

SRT M11 1/12 Pancar HV (0,055s/9.0kg/8.4V) Coreless Servo

Mallinumero: SRT-M11

84,91 € sis. 25.5 % ALV
Loppunut
Tuotekuvaus

The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.

Features:

  • Special 1/12 pancar servo
  • Supporting SXR, SFR, SR, SSR multiple ultra high speed modes
  • Incredible efficiency and low power consumption
  • 2 μsec Dead Band
  • 1-Year Limited Warranty

Specifications:

pecifications:

TypeDigital
BearingDual
Motor TypeCoreless
Gear TypeMetal
Gear MaterialTitanium & Steel
Control SystemPulse width control
Working Frequence1520μs / 333hz
Operating Voltagedc6.0-8.4v
Operating Temperature Range -10 to + 60 degree
Operating Speed (6.0V)0.07 sec/60 degrees at no load
Operating Speed (7.4V)0.065 sec/60 degrees at no load
Operating Speed (8.4V)0.055 sec/60 degrees at no load
Stall Torque (6.0V)7.0kg.cm (97.2 oz/in)
Stall Torque (7.4V)8.0kg.cm (111.1 oz/in)
Stall Torque (8.4V)9.0kg.cm (125.0 oz/in)
Potentiometer DriveDirect Drive

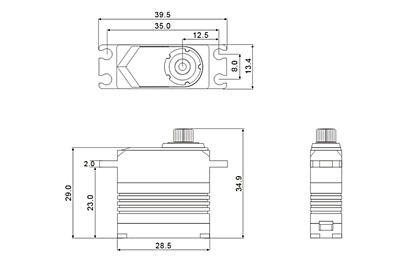

Dimensions28.5x13.4x29.0 mm /1.12x0.53x1.14 in
Weight28.0g (1.0 oz)
Connector Wire LengthJR 170 mm
