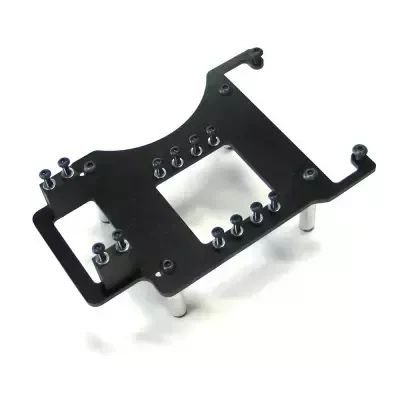

V2 RADIO PLATE 3-SERVOS COMPOSITE FG 4x4 / 4x2 WITH FRONT BRAKES

Radio plate for all FG track or off-road 4x2 or 4x4 cars originally equipped with a recumbent servo with front brakes. Mounts on 510 mm or 535 mm chassis.

 Servo screw center distance between 46 and 42 mm.

 Redesigned by HOBBY CENTER, this universal V2 plate can be used to mount one or two servos (standard width 20 mm) in the steering, replacing the large lying servo and a gas brake servo. It may be necessary to re-drill one of the risers to allow the throttle/brake servo wire to pass.

Machined in composite it complies with Formula France regulations. Its assembly on 4 feet allows to have all the radio control part on a single support. Disassembly for maintenance will be facilitated because it will suffice to remove the 4 screws under the chassis.

 The kit contains:

• 1 radio plate
• 2 extensions for gas servo
• 4 feet
• 4 allen M4x10 countersunk screws
• 4 Allen screws M4x10
